RAM-TRUCK HYBRID™ COMMERCIAL VEHICLE FRAME REPAIR SYSTEM

COMMERCIAL VEHICLE FRAME REPAIR SYSTEM

  • The HERKULES RAM-TRUCK hybrid™ system is designed for post-accident and operational repairs of damaged commercial vehicles - Truck frames.
  • It utilizes a set of devices anchored to a permanently embedded grate in the workshop floor, enabling effective, ergonomic, and safe straightening.

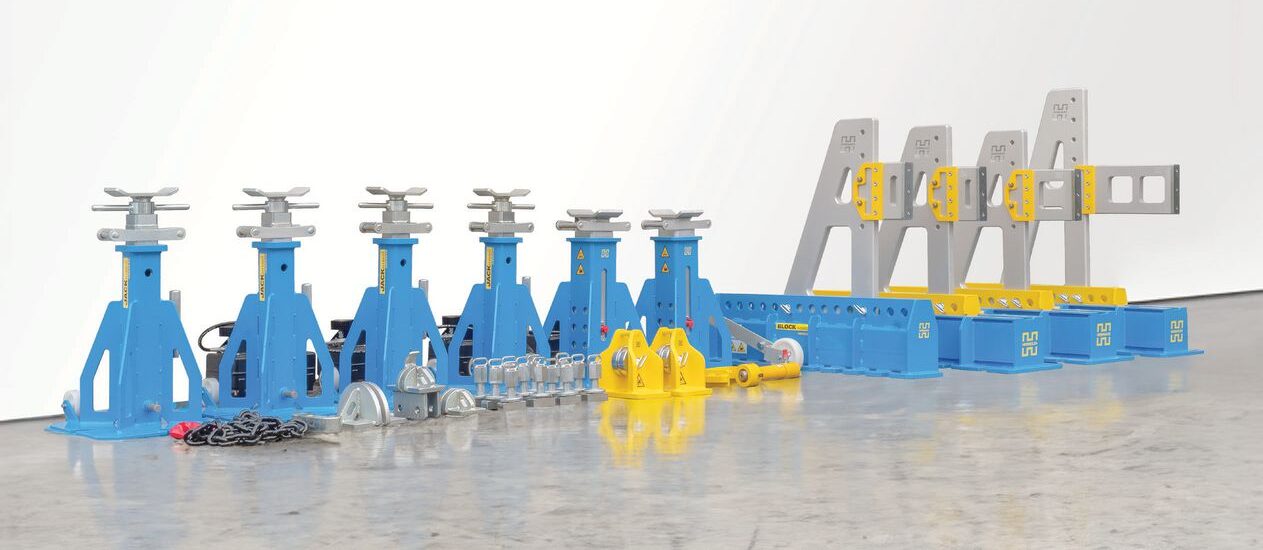

  • The basic set includes Horizontal presses
  • Blocking assemblies
  • Vertical presses, “C”-type presses
  • Supporting accessories.
  • Each set comes equipped with certified chains and hooks.
  • The grate is custom-made based on an individual project prepared for the investor. The fixing system utilizes slots in the grate, allowing rapid and efficient attachment of essential system components such as
  • Presses
  • Blocking assemblies
  • Pulling towers
  • Cabin repair system frames, and roller handles
  • Cabin repair system frames, and roller handles KOLLISIONZ is involved in the entire process, from designing the technology to fabricating the grate, delivering repair equipment, and training service personnel.

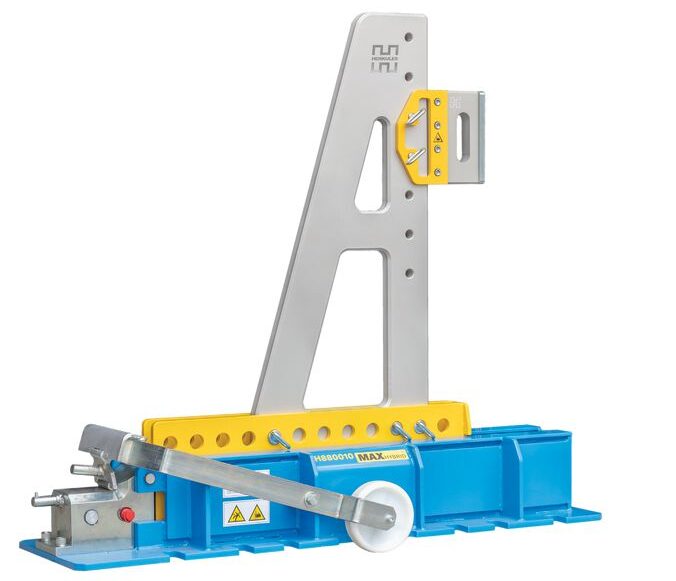

HORIZONTAL PRESS

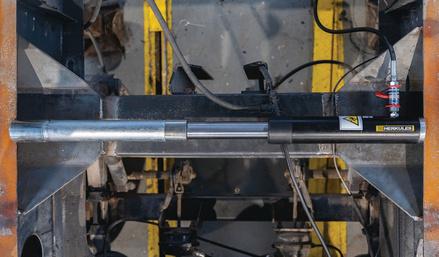

  • Horizontal press with a hydraulic drive can be used
  • To straighten the frame structure
  • As a barrier
  • Allows to increase the impact force during repairs.

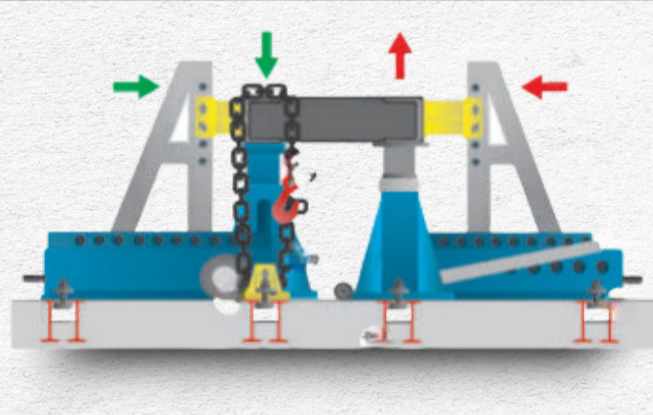

  • In the case of opposite directions, the action of the straightening forces is additive

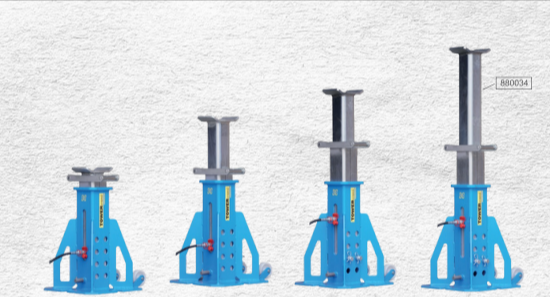

The new TOWER hybrid™ press has a very wide operating range, and when equipped with the extension adapter it can be used for trailer repairs.

A pneumatic cylinder facilitates lifting and height adjustment without the use of significant force.

The power devices are driven by pneumatic-hydraulic pumps. The repair system can additionally be equipped with a 400 kN press- -riveter, a 200 kN expansion set, or a system for mounting and repairing SUVs, delivery vehicles, off-road vehicles, and passenger cars. The repair system can also be supported by measuring devices for controlling the shape of frames and cabins, as well as wheel and axle alignment

EFFECTIVE REPAIR The repair station equipment offered by the HERKULES TRUCK hybrid™ system enables the repair of any damage that may occur as a result of an accident, collision, or operational wear. The right choice of equipment and employee training will ensure full and effective use of the capabilities of the HERKULES TRUCK hybrid™ system.
